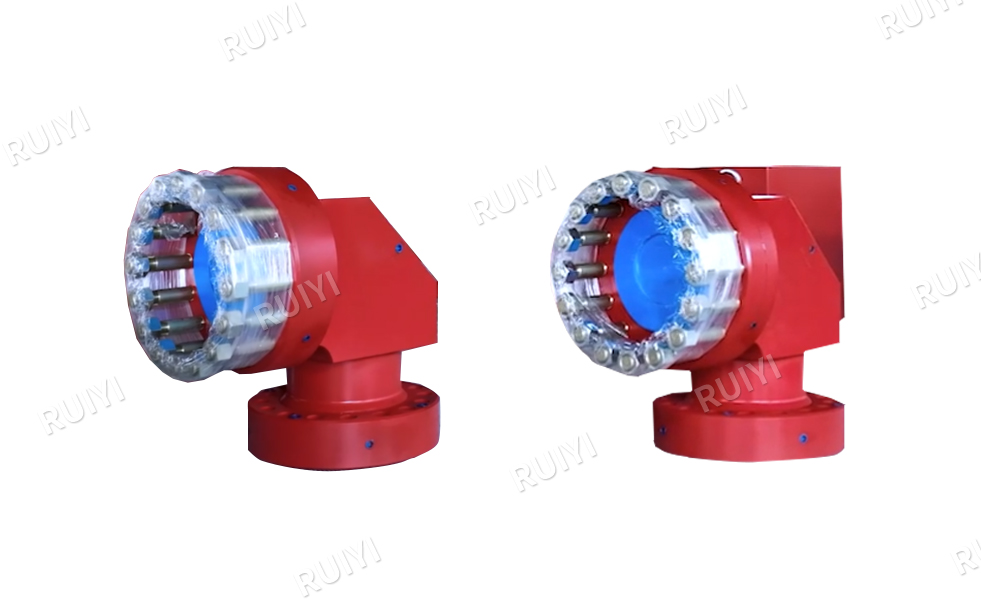

Flanged right-angle (streamlined) elbow, as an important pipeline connection component, play a crucial role in multiple industries.

Definition and Composition

A Flange type right angle elbow, also known as a pipe elbow, typically consists of a bent pipe and a flange. Its main function is to change the direction of the pipeline by 90 degrees to accommodate different pipeline layout requirements. This type of elbow is particularly common in fluid transportation systems, such as the transportation of liquids, gases, steam, and other media.

Characteristic

1. Compact structure: The flange type right angle elbow has a relatively small volume, light weight, and is easy to install and transport.

2. Reliable connection: Through flange connection, the connection between the elbow and the pipeline is more secure and less prone to leakage.

3. Strong corrosion resistance: suitable for the transportation of various corrosive fluids, ensuring the long-term stable operation of pipeline systems.

4. Streamline design: Streamline design helps reduce fluid resistance loss at bends and improve fluid transport efficiency.

Types and classifications

According to different connection methods and bending radii, flange type right angle elbows can be classified into various types. For example, according to different connection methods, it can be divided into welded elbows, threaded elbows, and flange elbows; According to the different bending radii, it can be divided into long radius elbows and short radius elbows.

Application scenarios

1. Chemical industry: used for connecting various chemical pipelines and fluid transportation systems.

2. Oil and gas industry: used in oil and gas transmission pipelines and oil and gas well facilities.

3. Electric power industry: used for steam pipelines, hot oil pipelines, and flue gas pipelines, etc.

4. Pharmaceutical industry: used for pipeline connections and fluid delivery systems in drug production.

5. It is also widely used in other industries such as construction, water conservancy, metallurgy, and shipbuilding.
